RPS65-200

The RPS65-200 supports a range of energy configurations, from grid-connected charging and discharging to off-grid power and generator hybridization. Its microgrid-forming and participation capabilities provide additional flexibility for distributed energy systems and applications requiring adaptable power infrastructure.

Scalable Energy Storage

With 195.6 kWh of nominal DC capacity and 173.6 kWh of usable energy, the RPS65-200 delivers substantial storage in a compact, skid-based platform. Systems can operate in parallel with other RPS65-200 units and compatible DEIF-controlled paralleling generators, supporting configurations of up to 16 systems.

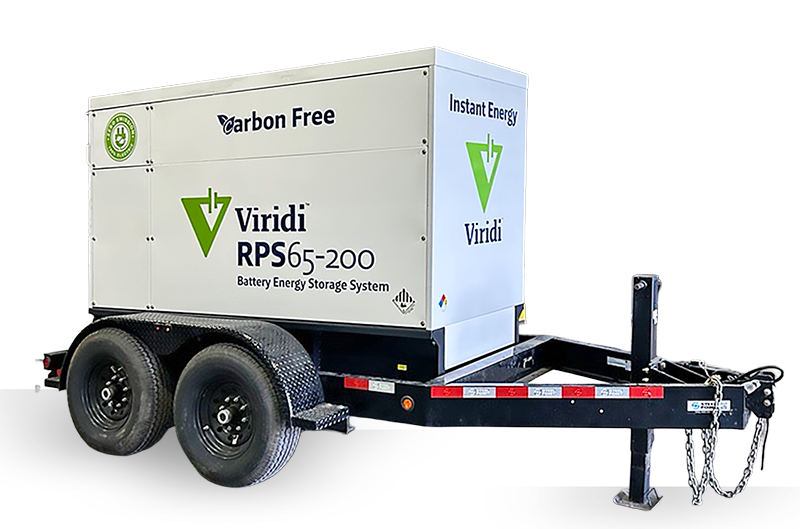

Built for Deployment

The RPS65-200 features a custom enclosure and a skid-based design compatible with towable trailers. Integrated forklift pockets and a single top-lift point support handling and deployment flexibility.

The unit measures approximately 109 inches long, 45 inches wide, and 75 inches high without a trailer. The skid-mounted system weighs 7,250 pounds, while the trailer-mounted configuration weighs 10,000 pounds or less.

Flexible Power Connections

Multiple auxiliary outlets and switchable AC cam-lock connections support a variety of power distribution needs. Available connections include 120V and 240V single-phase outlets, along with 208V or 480V three-phase AC connections.

Engineered for Operating Flexibility

The RPS65-200 is specified for operation between -10°C and 45°C (14°F to 113°F). Its battery management system monitors operating conditions and communicates with the inverter and/or system controller to manage battery utilization and internal temperature limits. Charging and discharging power may be reduced at temperature extremes, and the optimal charging temperature range is 0°C to 40°C.

Tested Components. Recognized Standards.

The RPS65-200 datasheet identifies certifications and component listings including UN 38.3 for cells and modules, UL 1642 and UL 2580 for cells, UL 1741 and IEEE 1547 for the inverter, UL 1973 for the RPS50 battery pack, and UL 9540 for the battery energy storage system.
